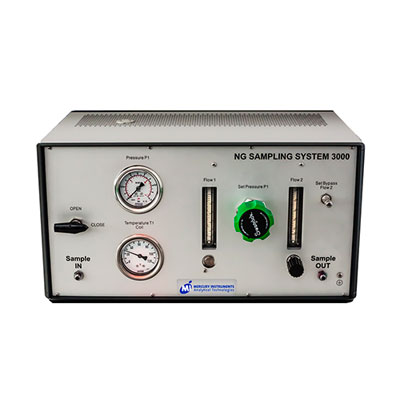

MUESTRA DE SISTEMA DE ACONDICIONAMIENTO PARA GAS NATURAL
El sistema de muestreo de gas natural 3000 está diseñado para el acondicionamiento rápido de muestras de una fuente de gas natural presurizado.
- Se puede conectar directamente a una tubería o cilindro de muestreo que contenga gas natural comprimido
- La salida del sistema de muestreo se puede conectar directamente al analizador UT-3000 para análisis directo de Hg o conectarse a bolsas Tedlar® para análisis de laboratorio en modo fuera de línea
- Features & Benefits
- Main applications
- Technical Specifications
- Technical Data
- Approvals & Certifications
- Downloads
- Now with improved design for easier maintenance
- Straight forward design
- Minimum of components
- All the parts in contact with the sample are silicon coated for moisture protection and enhanced stability
- Very fast conditioning and low memory effects
- The outlet of the sampling system can be connected directly to an analyzer (UT-3000)
- Alternatively the gas can be fed into a special sample bag (Tedlar® bag) and carried to the analyzer.
Technical Specifications | |
---|---|
Particle filter | 1 micron stainless steel T-filter |
Max. sample inlet pressure | approx 200 bar |
Pressure out: | 0.0 – 1.0 bar (typically 0.28 bar) |
Materials used: | Stainless steel (partially coated), Viton, Ismaprene |
Technical data | |
---|---|
Power supply | 230 VAC / 50 Hz (110 VAC / 60 Hz option) |
Power consumption | 175 VA |
Dimensions (W x H x D) | 45 x 23 x 36 cm |
Weight | approx. 10 kg |
- Our products are manufactured according to the ISO 9001 quality regulations.
- CE approved
