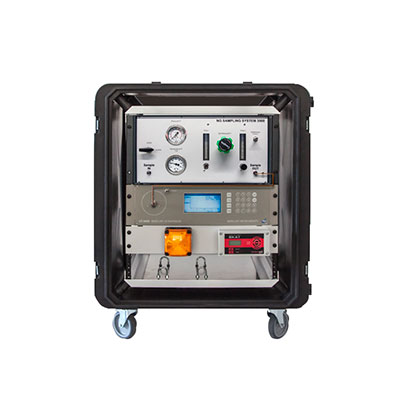

Analizador de mercurio móvil para gas natural

UT-3000 NG mobile

Perfectamente adecuado para monitorear la eficiencia de diferentes absorbentes de mercurio (sistemas de eliminación de mercurio, MRU) en el procesamiento de gas natural.

Cada sistema de determinación de mercurio en línea debe cumplir diferentes requisitos en cuanto a la composición del gas de muestra, la instalación y las condiciones de funcionamiento. Tenemos la experiencia para proporcionar sistemas de gas natural adaptados a sus necesidades específicas.

  • Built-in wheels for easy transport
  • Well proven components: UT-3000 Ultratracer and NG Sampling System 3000
  • AutoRange function
  • Gas alarm for increased safety
  • Manual Calibration Set (CalSet) included
  • Automatic caibration unit (AutoCal) as an option
  • Option: explosion-proof cabinet certified for hazardous zones 1 and 2 (EEX certified)
  • Natural gas platforms
  • Exploitation of natural gas
  • Natural Gas processing plants
Technical Specifications
Measuring principle Amalgamation (MI GoldTrap), cold vapor atomic absorption (CVAAS) at 253.7 nm
UV-Source Electrodeless low pressure mercury lamp (EDL)
Stabilization method Reference beam method
Optical cell Fused silica (Suprasil), l: approx. 230mm, heated approx. 45°
Measured component: Total Gaseous Mercury (TGM)
Measuring ranges owest range:
0.1 ng/m3 – 1000 ng/m3 (at 10 l sample gas volume); medium range: 1 ng/m3 – 10 000 ng/m3 (at 1 l sample gas volume); screening mode: 10 ng/m3 – 30 000 ng/m3 (at 0.1 l sample gas volume)
Detection limit 1 pg absolutely or 0.1 ng/m3
Linearity over the 0.2 to 15000 ng/m3 range 3% or better
Reproducibility 5% or better
Technical data
Signal outputs USB/RS232 (detector)
Status output 3 x pairs of relay contacts (dry contacts)
Max. sample temperature 80 °C
Operating temperature 0 °C … 40 °C
Power supply 230 VAC / 50 Hz (110 VAC / 60 Hz option)
Power consumption System: 425 VA; (UT-3000: 250 VA max); (NG Sampling System 3000: 175 VA)
Dimensions (W x H x D) 72 x 78 x 78 cm
Weight approx. 50 kg
  • Our products are manufactured according to the ISO 9001 quality regulations.
  • CE approved
