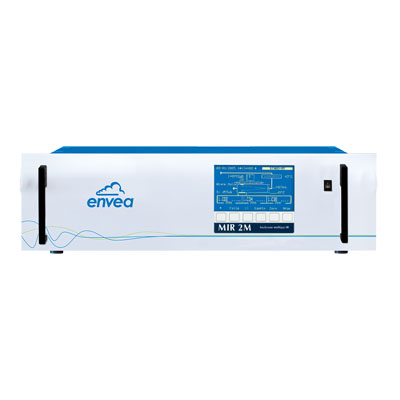

El analizador MIR2M existe en diferentes versiones: monocanal o bicanal y en la versión “Ultra Low” para mediciones de bajas concentraciones de CO (de 0-10 a 0-50 ppm). Se instala aguas abajo de un chiller, con temperatura controlada para reducir la humedad de la muestra a analizar.

  • Non Dispersive Infra Red Gas Correlation Filter (IR GFC) principle
  • Short response time: < 2 seconds
  • Simultaneous 2-channel monitoring (option)
  • Graphic Liquid Crystal Display (LCD)
  • Interactive menu driven software with enhanced speed display
  • Real time calibration graph
  • User adjustable response time and averaging time
  • Built-in storage of 2 months 1/4 h average data (up to 1 year with the optional memory extension)
  • Built-in double serial interface (RS 232/RS 422) for remote control
  • Ethernet connection
  • AK Protocol via LAN
  • Engine exhaust gas monitoring (raw and CVS)
  • Electro-filters
  • Combustion plants
  • Pre & post catalyst
  • Research & Development
  • Quality Assurance
Technical Specifications
Measurement range CO: 10 to 50,000 ppm, CO2: 100 to 250,000 ppm, O2: 0 to 25%v
Response time (0-90 %) 2 sec
Working temperature +15°C to + 40°C
Housing rack 19” / 3U
Communication RS 232 & TCP/IP, AK protocol
All EGAS equipments are fully compliant to the worldwide vehicle Emission Standards, including CFR 40 -1065, Diesel 2007/2010, Euro V & Euro VI, EEM (Engine Emission Monitoring)
