MEDICIÓN DE CAUDAL PARA TRANSPORTE NEUMÁTICO EN FASE DENSA

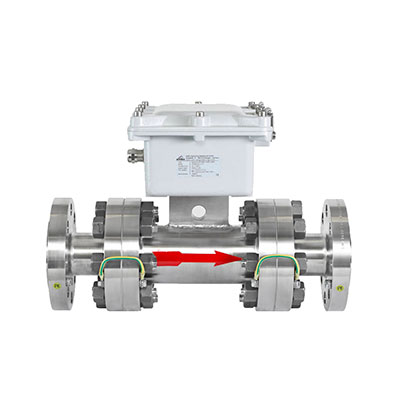

DensFlow HP

Medición continua del flujo de polvo o gránulos en un transporte de alta presión en fase densa.

Especialmente desarrollado para medición de flujo de sólidos en transporte en fase densa.
El sensor mide la concentración y la velocidad del flujo sólido.

También disponible para altas presiones hasta 110 bar.

  • Reliable flow metering in pneumatic dense-phase
  • Installation creates no obstacle in the profile, hence no dead spots in which residue can form
  • Maintenance-free
  • Contactless measuring procedure (no mechanics)
  • Highly wear-resistant ceramic inner tube
  • Reliable measurement of density and velocity
  • ATEX category 3 approved
  • Short response time for material flow detection
  • According to pressure equipment directive (on request)
  • Materials: Powder or granules in pneumatic dense-stream transport
    Main applications:

  • Coal gasification
Technical Specifications
Material to measure Dust and powders
Working principle Electromagnetic
Process pressure max 110 bar
Process temperature Up to +120°C
Mounting Flange build-in
Type of Conveying Pneumatic densphase
Flow rates No limit
Pipe diameter Max. DN 150mm
ATEX rating Category 3, Cat. 1 applied
Output 4…20mA, Modbus, Profibus
