SEGUIMIENTO DE NIVEL CONTINUO

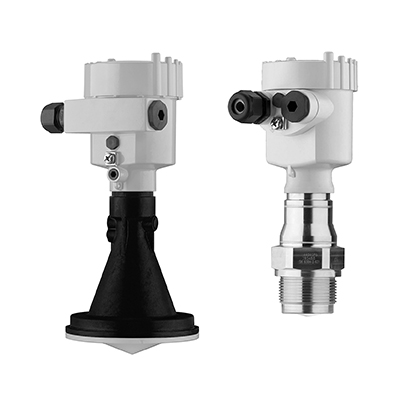

Nico 120

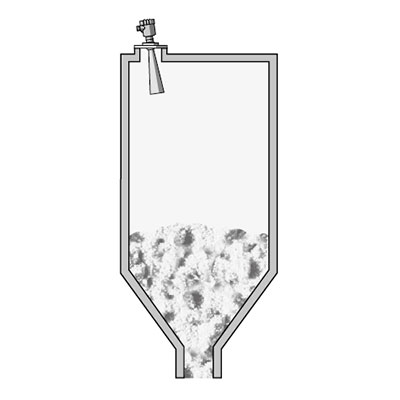

Sensor radar para medición de nivel en silos y contenedores. Disponible para silos con alturas de hasta 120 m. Se puede utilizar para una amplia variedad de materiales, independientemente del tamaño o composición del material.

Sensor con frecuencia de funcionamiento de 80GHz

  • Continuous measurement
  • Also under difficult process conditions
  • Can be used on a wide range of different materials
  • For level measurement in vessels up to 120 m height
Technical Specifications
Material to measure Dust, powders or granulates
Working principle Radar
Silo diameter/ detection range Up to 120 m height
Process pressure -1 … 20 bar
Process temperature -40 … 200 °C
Mounting Installation bar, 1 1/2 ” threat connection, flange
Place to measure Silos, containers, conveyor belt
ATEX rating Category 1
Output Relay, 4…20mA, Modbus, Profibus
Technical Data
Measuring range – Distance 120 m
Process temperature -40 … 200 °C
Process pressure -1 … 20 bar
Accuracy ± 5 mm / ± 0.2“
Version with plastic horn antenna ø 80 mm
Metal jacketed lens antenna
Materials, wetted parts 316L
PP
PEEK
Threaded connection  G1½, 1½ NPT
Flange connection ≥ DN80, ≥ 3“
Seal material EPDM
FKM
Housing material Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating IP 66/IP 68 (0,2 bar)
IP 66/IP 67
IP 66/IP 68 (1 bar)
Output Profibus PA
Foundation Fieldbus
4 … 20 mA/HART – two-wire
Modbus
4 … 20 mA/HART – four-wire
Ambient temperature -40 … 80 °C
