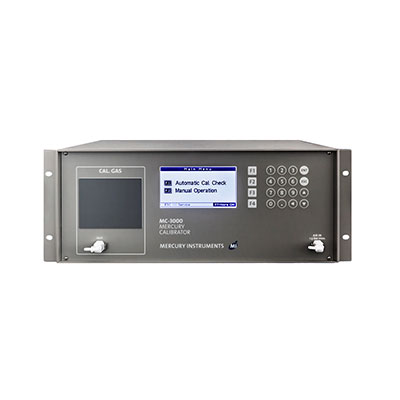

MC 3000

El sistema MC-3000 genera una corriente continua de vapor de mercurio para controlar o calibrar analizadores de mercurio.

El MC-3000 se utiliza para generar una corriente continua de una corriente de gas cargada de vapor de mercurio para verificar o calibrar analizadores de mercurio. También es adecuado para todas aquellas aplicaciones donde se necesita una corriente de gas con una concentración de mercurio preestablecida y constante.

  • Generates elemental mercury vapor
  • Continuous operation
  • Approx. 10 to 500 µg/m3 Hg°
  • Compact sized and portable
  • No permeation principle – no need to calibrate the calibrator
  • Microprocessor controlled
Suitable for all applications where a gas stream with a preset and constant mercury concentration is needed
Technical Specifications
Range of concentrations approx. 10 to 500 µg / m3 Hg°
Generated calibration gas flow 1 to 9 l/min, depending on conc.
Carrier gas Air, Nitrogen
Carrier gas flow max. 12.5 l(min)
Carrier gas pressure 1 to 3 bar
Cleansing of carrier gas builtin particular filter (0.2 µm )
Mercury absorption filter sulphurized activated carbon at outlet
Temperature sensors Pt-100 with 0.01 °C accuracy
Flowmeter electronic mass flow controller (MFC)
Connectors for tubing 4mm i. d. / 6mm o. d.
Technical data
Power supply 230 VAC / 50 Hz (110 VAC / 60 Hz option)
Power consumption 30 VA
Dimensions (W x H x D) 45 x 18 x 27 cm
Weight approx. 5 kg
  • Our products are manufactured according to the ISO 9001 quality regulations.
  • CE approved
