Miniestaciones basadas en sensores

Cairnet® DATA+

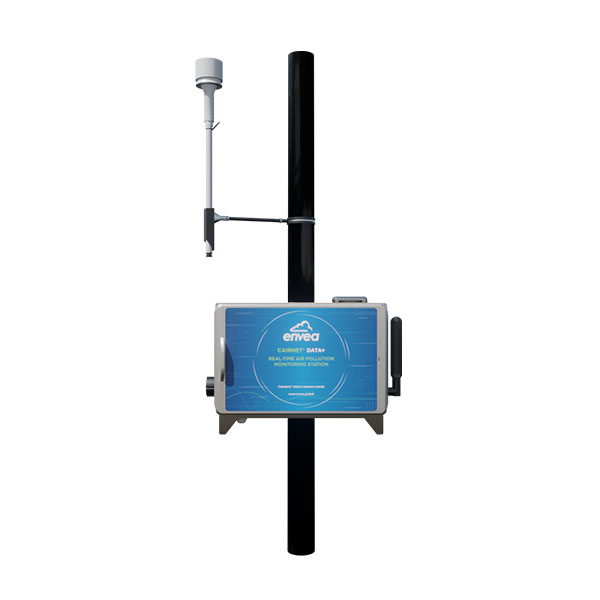

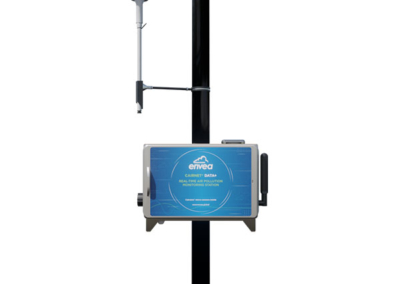

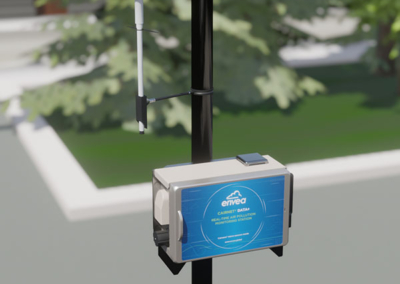

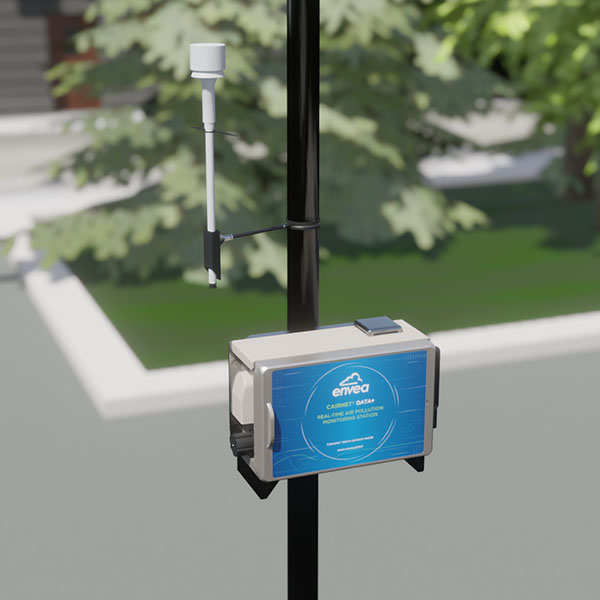

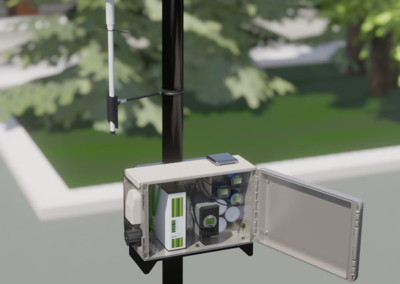

Cairnet® DATA+ es una estación de monitoreo de la calidad del aire en tiempo real que incluye hasta seis microsensores Cairsens®.

También monitorea parámetros ambientales como la velocidad y dirección del viento, T°C,% de humedad relativa y Pa. El dispositivo ha sido diseñado para aprovechar la comunicación local y cuenta con alimentación principal y comunicación celular. Puede adquirir datos de fuentes complementarias como estaciones meteorológicas “todo en uno”, sensores de ruido, etc.

Cairnet® DATA+ se puede conectar fácilmente a nuestras soluciones en la nube o a nuestra plataforma de software para clientes mediante API.

Medición y monitoreo continuo en tiempo real de hasta 10 contaminantes gaseosos y particulados simultáneamente, incluidos: H2S/CH4S, NH3 , nmVOC, O3+NO2, NO2, CO, SO2, PM10, PM2.5 &erio; PM1

Features

  • Local and remote communication: 4G via local server, Wi-Fi, TCP-IP Modbus, 4-20 mA
  • Indoor/outdoor compact & easily deployable housing

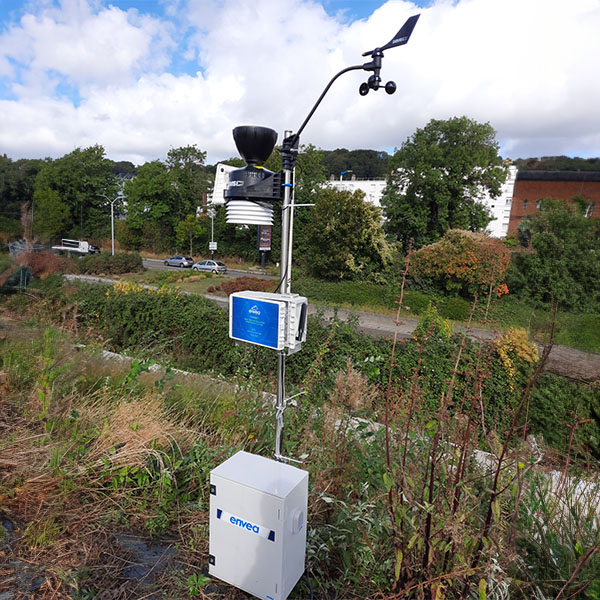

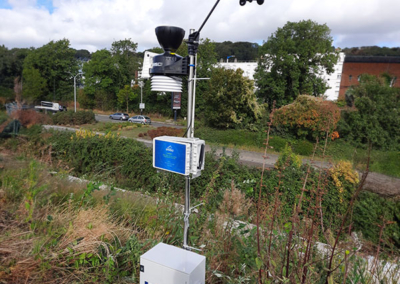

  • Designed to acquire data from complementary sources such as “all in one” weather stations, noise sensors, etc.

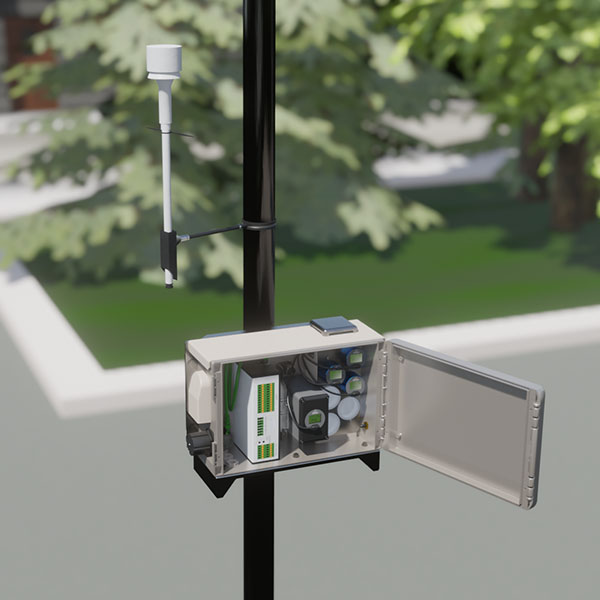

  • Integrated manifold: dynamic sampling
  • Limited maintenance: annual replacement of sensor only
  • Protection of electronic components against the effects of corrosion
  • Data security and privacy thanks to direct and local communication to the reporting platform
  • Accurate and reliable measurements across a broad range of industries and applications
  • Operating cost savings: process adjustment & improvement of local communication
  • Gives a complete picture of the environmental impact of your operations
POLLUTION CONTROL OF INDUSTRIAL SITES / HEALTH AND SAFETY:

  • WWTP, recycling
  • Pulp and paper manufacturing
  • Refineries
  • Manufacturing plants and gas transport
INDOOR AND OUTDOOR AIR QUALITY MONITORING:

  • Urban areas/cities: road traffic, schools, tunnels
  • Complement to  Reference Air Quality Monitoring Network
  • Industrial areas: airports, ship terminals, manufacturing plants
Measurable parameters
Pollutant Range
(ppb)
Certified detection
limit (ppb)*
Resolution
(ppb)
Order
code
NO2 0-250 20 1 A40-0405
O3 / NO2 0-250 20 1 A40-0406
SO2 0-1,000 50 1 A40-0407
CO 0-20,000 50 1 A40-0404
H2
S / CH4S
0-1,000
0-20,000
0-200,000
10
30
200
1 A40-0401
A40-0402
A40-0403
NH3 0-25,000 500 1 A40-0408
nmVOC 0-16,000
0-2,000
500
200
1 A40-0409
A40-0410
PM10/PM2.5/PM1 0-1,000 µg/m3 <5 µg/m3 0.01 µg/m3 A40-0414
*They are delivered with a calibration certificate.
Technical specifications
Power supply (included) 12 VDC / 2.5 A
Internal data logger Microprocessor for data acquisition, power and communication
management, etc.
Based on eSAM software
Wireless communication Wi-Fi, Cellular technology LTE / 4G or more (SIM card, not provided)
Regulatory compliance: R&TTE directive 1999/5/EC,
Japan JRF/JPA – FCC – IC
Data storage
  • Internal storage on micro SD card of all data in case of loss of cellular communication
  • Cairsens® internal memory
Mounting Fixation kit for pole (⌀ 50 mm max ) included
Dimensions of the Cairnet® housing with fixation kit & antenna 300 x 215 x 257 mm (L x H x W)
Dimensions of the outdoor power supply (included) 150 x 50 x 150 mm (L x H x W)
Weight of the Cairnet® housing 4 Kg
Weight of the outdoor power supply 1 Kg
Environmental operating conditions -20°C to +50°C / RH 10% to 90%
Option: ultrasonic anemometer
(article code A40-0220)
Wind speed:
• Range: 1 – 40 m/s
• Sensitivity: 0.13 m/s
Wind direction:
• Range: 0 – 359°
• Sensitivity: +/- 1.5°
• Battery 600mA / 3.2 mV rechargeable via solar panel (integrated)
• Autonomy: 7 days
• Weight & size (sensor head + tube): 290 g / ø 64 mm – height 400 mm
• IP67 Rating
Option: 4-20mA analog output Integrated in waterproof housing for up to 8 outputs.
