ANALIZADOR DE MERCURIO PORTÁTIL EN TIEMPO REAL ALL-IN-ONE

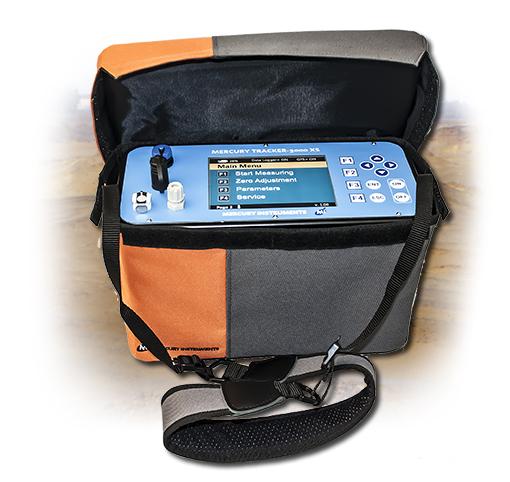

Mercury Tracker-3000 XS

Muy pequeño, ultraligero, con GPS integrado, registrador de datos, batería y pantalla TFT en color para un control cómodo y sencillo del mercurio en el aire ambiente y otros gases.

El monitoreo y la detección de mercurio portátiles son fáciles con el Mercury Tracker 3000 XS. Ligero, robusto y compacto, el instrumento es perfecto para la detección interna y externa de la concentración de mercurio en el aire ambiente y para la detección de fugas de mercurio.

The user controls the Mercury Tracker-3000 XS by menu-guided inputs on a waterproof membrane keypad and a 5.7″ TFT graphic display with LED backlight. After switching on the mercury tracker monitor, the light source is stabilized (approx. 1 – 5 minutes) and the baseline is automatically adjusted by the auto zero function. Measurement will start automatically, and will display continuously the mercury concentration in the air as a numerical value and a graphic bar.

  • Real time mercury measurement
  • High precision measuring technology: “Cold Vapor Atomic Absorption Spectrometry” (CVAAS) , which is extremely sensitive for mercury determination and is widely used for many years
  • Easy to operate, capable of measuring trace mercury levels
  • Sturdy and noncorrosive ABS case, chock proof and corrosion resistant for rugged field operation
  • Bag pack included, with comfortable shoulder strap, dirt repellent with padded top for transport and savekeeping
  • Operates at least five hours on fully charged Eneloop battery pack (aditional quick swap Eneloop battery packs optional)
  • Measuring ranges 0.1-100 / 0-1000 / 0-2000 µg/m3
  • High resolution 0.0001 mg/m3
  • Data logger (with GPS) integrated (4GB capacity)
  • Environmental monitoring
  • Mercury spills screening
  • Safety at work
  • Hazardous waste inspection
  • Investigation of contaminated sites
  • Investigation of mercury contamination in air
  • Measurement of mercury in scientific research
  • Exhaust gas survey
Technical Specifications
Measuring principle cold vapor atomic absorption (CVAAS) at 253.7 nm
UV-Source Electrodeless low pressure mercury lamp (EDL)
Stabilization method Reference beam method
Optical cell Fused silica (Suprasil), l: approx. 170mm
Sensitivity 0,1 μg/m3
Response time approx. 1 sec, real time measurement
Measuring ranges 0.1 to 100 µg / m3; 0 to 1000 µg / m3; 0 to 2000 µg / m3
Computation of mean values Autom. via three freely selectable time intervals
Data logger with GPS capacity = 4 GB
Technical data
Signal outputs USB / Bluetooth (software for data transfer included – EXCEL or ASCII format)
Status alarms Measuring cell polluted; battery state; UV-Lamp exhausted
Internal power supply rechargeable 12 V Eneloop batteries with min. capacity of 7 hours and minimized self-discharge, quick swap battery packs as option
External power supply 110 – 230 VAC/50 – 60 Hz; with mains adapter; external 12 VDC sources, (Cigarette lighter adapter optional)
Dimensions (W x H x D) 29 x 14 x 17 cm
Weight approx. 2.6 kg (with battery pack)
  • Our products are manufactured according to the ISO 9001 quality regulations.
  • CE approved
