MONITOREO AUTOMÁTICO DE MERCURIO EN AIRE Y GASES
MMS

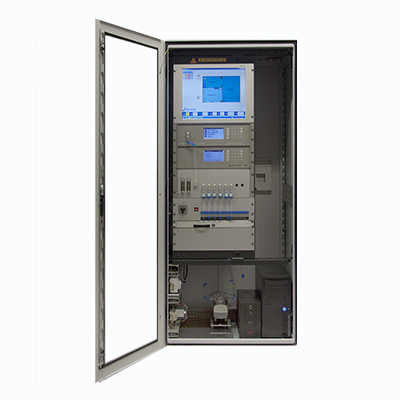

El MMS consta básicamente de una unidad de válvula multiplexora y un detector de mercurio selectivo y de alta precisión (VM-3000 Vapor Monitor) para mediciones en aire u otros gases.
Cada sistema de monitoreo de mercurio en línea difiere según las características de la muestra, las condiciones de instalación y su entorno operativo. Tenemos la experiencia para diseñar sistemas que cumplan plenamente con todos los requisitos de su aplicación relacionados con el monitoreo de mercurio.
- Features & Benefits
- Main applications
- Technical Specifications
- Technical Data
- Approvals & Certifications
- Downloads
- Low maintenance
- Insensitive to water vapors
- High stability, fast response time
- Monitors 2 to 24 measuring points automatically
- Versions for air, hydrogen and other gases available
- Permanent purging of all sample lines
- Measuring ranges from 0.01 µg/m3 to 2000 µg/m3 Hg
- Software for data acquisition, data visualisation and storage
- Automatic Calibration Module
- Special version with UT-3000 Ultratracer available
- Chlor-alkali plants with mercury cells
- Metallurgical industry
- Fluorescent lamp production or recycling
- Battery recycling plants
- Contaminated sites
- Hydrogen production plants
- Laboratories or processing plants working with mercury
- Gold mines
- Natural gas industry (see product MMS-NG for natural gas systems)
| Technical Specifications | |
|---|---|
| Measuring principle | cold vapor atomic absorption (CVAAS) at 253.7 nm |
| UV-Source | Electrodeless low pressure mercury lamp (EDL) |
| Stabilization method | Reference beam method |
| Optical cell | Fused silica (Suprasil), l: approx. 230mm, heated approx. 45° |
| Measured component | Total Gaseous Mercury (TGM) |
| Measuring ranges (Standard version) | 1 – 100; 1- 1000; 1 – 2000 µg / m³ |
| Measuring ranges (special version with UT-3000 Ultratracer) | 0,01 – 50 µg/m³ |
| Measuring duration | 45 sec – 99 minutes, separately adjustable for each channel |
| Sample flow | approx 80l/h per channel |
| Heating of valve unit | approx. 70 °C |
| Technical data | |
|---|---|
| Signal outputs: analogue | 4-20 mA; serial: RS 232; Modbus RTU (optional); Ethernet (optional) |
| Status output | 3 x pairs of relay contacts (dry contacts) |
| Max. sample temperature | 65 °C |
| Operating temperature | 0 – 40 °C |
| Power supply | 230 VAC / 50 Hz (110 VAC / 60 Hz option) |
| Power consumption | max. 500 – 750 VA; depending on number of channels and optional equipment |
| Cabinet | metal, protection standard IP 55 (NEMA 4X, others optional) |
| Dimensions (W x H x D) | from 553 x 600 x 500 mm (WxHxD) to 800 x 2000 x 600 mm; depending on number of channels and optional equipment (air conditioning) |
| Weight | approx. 35 – 175 kg; depending on number of channels and optional equipment |
- Our products are manufactured according to the ISO 9001 quality regulations.
- CE approved
