Medición de ultratrazas de mercurio total en forma gaseosa

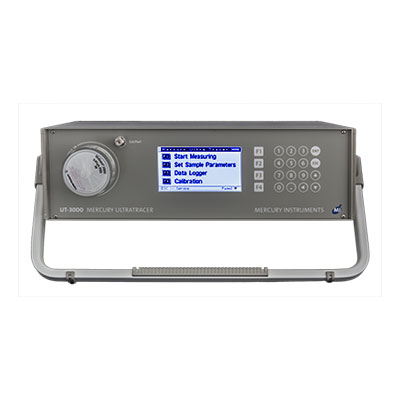

UT-3000

El sistema Ultratracer (UT) mide el mercurio total en forma gaseosa (TGM) en el aire u otros gases (ng, por ejemplo). Compacto y fiable para mediciones de trazas (subng/m3) según EN 15852

El UT-3000 funciona automáticamente. Todas las funciones están controladas por un microprocesador incorporado. Cuando se toman las mediciones, todos los parámetros y resultados se almacenan en el registrador de datos integrado.

Con la configuración estándar, el registrador de datos tiene una capacidad de registro de 4 semanas.

  • Offers sensitivity and detection limits far superior to other mercury analyzers on the market using similar technologies
  • Unlike with the fluorescence detection method, the analyzer does not require expensive carrier gases
  • Insensitive to interferences caused by the quenching effect
  • Automatic Operation
  • Automatic sample flow control
  • AutoRange function
  • Manual or automatic calibration modules (optional accessories)
  • Integrated data logger for more than 5000 measurements
  • Multiplexer operation (option)
  • Special version UT-3000 NG mobile (option) – all in one system for mercury measurements in natural gas
  • Continuous outdoor and indoor air quality monitoring
  • Stationary and mobile AQMS laboratories
  • Industrial fence-line and field monitoring
  • Environmental pollution source tracking
  • Studies of mercury dispersion in the atmosphere
  • Natural gas and derivatives
  • Emission monitoring
  • Process monitoring
  • Plume profiling
  • Studies of interaction between atmosphere and surfaces
  • Soil and ground degassing studies
Technical Specifications
Measuring principle Amalgamation (MI GoldTrap), cold vapor atomic absorption (CVAAS) at 253.7 nm
Measured component Total Gaseous Mercury (TGM)
UV-Source Electrodeless low pressure mercury lamp (EDL)
Stabilization method Reference beam method
Optical cell Fused silica (Suprasil), l: approx. 230mm, heated approx. 45°
Detection limit 0,1 ng/m3 corresponding to 0,5 pg Hg absolutely
Sample volume 0,1 l to 10 l
Sampling duration 9 sec … 15 min
Measurement cycle time 3 … 99 min
Measuring ranges at 10 l sample volume: 0,1 ng/m3 to 1000 ng/m3; at 1 l sample volume: 1 ng/m3 to 10 000 ng/m3
Data logger function integrated, for up to 5 000 measurements
Calibration manually – by injecting calibration gas into the calibration port (syringe optionally available); automatic -with calibration gas unit (option)
Technical data
Signal outputs analogue: 4 – 20 mA (500 Ω max.); serial: RS232 / USB
Status output 3 x pairs of relay contacts (dry contacts)
Ambient temperature range allowed 0 to 40°C
Power supply 230 VAC / 50 Hz -110 VAC / 60 Hz
El. Power consumption 250 VA max. (heating peak)
Battery power supply pack optionally available
Dimensions (W x H x D) 45 x 15 x 35 cm (without filter)
Weight approx. 9 kg
  • Compliance with DIN EN 15852 – Ambient air quality – Standard method for the determination of total gaseous mercury
  • Our products are manufactured according to the ISO 9001 quality regulations.
  • CE approved
