analizador de CO

CO12e Dilución

Analizador con tecnología de infrarrojos no dispersivo para mediciones de CO con un rango de 0-50 ppm. Monitorización de CO2 como opción

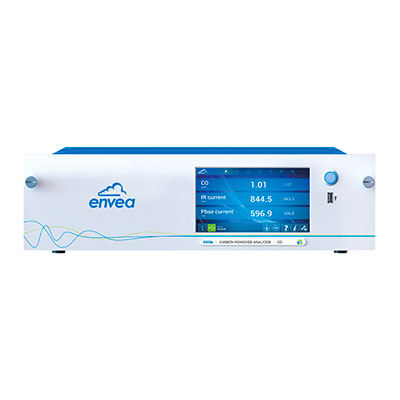

El analizador de CO12e es un analizador certificado por TÜV QAL1, aprobado por la EPA de EE. UU. y compatible con ISO 4224 para el monitoreo de la calidad del aire diseñado ambientalmente, y ofrece un rendimiento metrológico superior para mediciones de CO en el rango de 0 a 300 ppm. Monitoreo de CO2 como opción (rango: 0-2000 ppm de NDIR)

  • Cost-saving analyzer with ultra low power consumption, 24 V supply (option) and able to withstand temperatures up to 45-50 °C without air conditioning
  • Excellent sensitivity & signal stability, great accuracy and repeatability
  • Real-time calibration graph, animated synoptic, auto-diagnostic, control and maintenance data screens can be displayed while the instrument is operating
  • Service assistance inside: detects early signs of trouble, allows predictive maintenance, identifies the needed service and guides service operations step by step: increased productivity on site, reduced downtime, more efficiency, less training…
  • Includes Communication Protocol for XR® Software with automatic recognition and configuration
  • Automatic recognition of plugged electronic boards or optional devices: plug & play principle
  • Smart, connected instrument with embedded web server for the easiest, full remote control and operation of the analyzer from any PC, tablet or smartphone (configuration, calibration, test, diagnostic parameters…)
  • Continuous indoor and outdoor air quality monitoring
  • Stationary and mobile AQMS laboratories
  • Industrial fence-line monitoring
  • Continuous emissions monitoring (CEM) by dilution
  • Background (urban or suburban), Rural, Traffic, Kerbside measurement campaigns and monitoring studies
  • Laboratory and field studies on CO effects
Measurable parameters
Pollutant Range
CO 0-300 / 6000
CO2(%) 0-20
Lowest / Highest available ranges expressed in mg/m3 (may vary with your site conditions to be indicated on the Site Survey Form)
(*) Min/Max based on 100/200 Dilution Rate (other ranges & dilution rates available upon request)
Technical specifications
Sampling technology Dilution
Sample transfert non heated polytube
back flush function YES
span injection YES
Built-In O2 option NO
Serial link communication Optional
Other Communication Ethernet
Analogue OUTPUTS Optional
Analogue INPUTS Optional
Dimensions (mm) • Version (19” Rack):
483 x 545 x 133 mm (D x W x H)

  • 7’’ TFT colour touch screen
  • Wireless module (in standard with the no-screen version)
  • Built-in CO2 monitoring module (range: 0-2000 ppm by NDIR)
  • RS232 or RS485 Serial interface (via USB port)
  • External opto-isolated I/O interface with:
    4 independent analog inputs
    4 independent analog outputs
    4 remote control inputs
    6 dry contacts outputs
  • 24 V (option)

  • EN 14626 (2012), EN 15267, 2008/50/EC, 40 CFR PART 53 SUB B & SUB C
  • QAL 1 certified by the TÜV to N° 0000050626
  • U.S. EPA approved as compliant with RFCA-0915-228
