Sistema de gestión CEMS de multiplexación

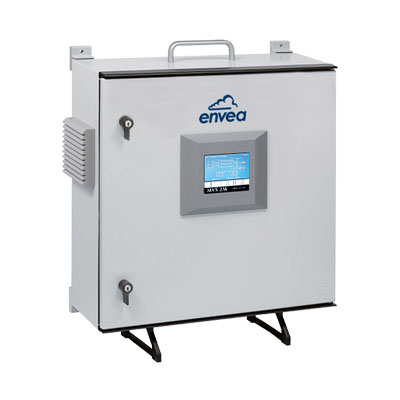

MVS 2M es un sistema multicanal que permite distribuir dos, tres o cuatro canales de fluidos y señales a un sistema de monitoreo de gas (GMS).

Su función es vincular el GMS con los sistemas de muestreo de gas y gas de patrón, y permitir la función de redundancia.

Disponible en 2 versiones:

  • MVS 2M calentado, para uso con sistema de muestreo HOFI y monitores de gas MIR 9000H / MIR FT / Graphite 52M
  • MVS 2M sin calefacción, para usar con el sistema de muestreo SEC y los monitores MIR 9000 / MIR 9000CLD / MIR IS
For stacks, the sampling is carried out using the HOFI boxes (MVS 2M – heated version) or the SEC probes (MVS 2M – not-heated version). Other sampling systems are possible on request. The redundancy functions are only ensured for the sampling boxes, DTP (flow-temperature-pressure) function included. All other measurements (dust, mercury, etc.) are not taken into account by the MVS 2M.
  • Data communication and control functions are ensured by Ethernet, serial link or dry contact
  • No influence from the pressure
  • Back-up of RAM memorized data and real time clock
  • Interactive menu-driven software with LCD display allowing ease of operation
  • All the ENVEA’s gas sampling systems can be used with dry or heated MVS multiplexing solutions (2 to 4 channels)
  • Over 1,000 installations worldwide, covering many applications and industries
    Available in 2 versions:

  • MVS 2M heated, to be used with HOFI sampling system and MIR 9000H / MIR FT / Graphite 52 M gas monitors
  • MVS 2M non-heated, to be used with SEC sampling system and MIR 9000 / MIR 9000CLD / MIR IS monitors
  • Cogeneration, Gas Turbines
  • Industrial Boilers
  • Furnaces
  • Power & Combustion
  • Cement plants
  • Incinerators…
Technical Specifications
Heated version Unheated version
Pre ventilation of gas sample or bleeding air 100-200 l/h 15-30 l/h
Compressed air pressure 5.5 bar mini N/A
Compressed air consumption 0.5 to 1 m3/h N/A
Electric consumption 700 W (2 channels) / 1000 W (3 channels)
1300 W (4 channels) + 110 W per meter of heated line
Communication port RS232/RS422, Ethernet
Operating temperature +5°C to +40°C
Working temperature  180°C ambient T°
Alarm checking Permanent: display or bargraphs indication
with WEX software
Thermal alarms: alarms T°C <175°C —
190°C > alarms T°C,
Permanent: display or bargraphs
indication with WEX software
Ejector Built-in, heated N/A
Dimension (DxWxH) 300x632x847 mm 200x400x600 mm
Weight (kg) 15 Kg 10 Kg
MVS 2M supplies GMS with measurement gas exclusively through one channel, or sequentially through two, three or four channels.

This equipment is slave of the Central Control Desk (PCC), even if it is possible to manually control MVS 2M from LCD screen mounted on the front panel.
