Analizador multigas NDIR-GFC

MIR 9000

Ofrece un rendimiento excelente para mediciones de múltiples gases en muestreo seco, incluidos HCl, HF, NO, NO2, N2O, SO2, CO , CH4, TOC, CO2 y O2.

El analizador multigas NDIR-GFC (correlación de filtro de gas infrarrojo no dispersivo) mide hasta diez gases simultáneamente, incluidos óxido de nitrógeno (NO), dióxido de nitrógeno (NO2), dióxido de azufre (SO2), monóxido de carbono (CO), ácido clorhídrico (HCl) y ácido fluorhídrico (HF).

Más de 5.000 analizadores SME/CEMS mod. MIR 9000 instalado en todo el mundo para la optimización de procesos y el cumplimiento de la normativa medioambiental

  • The MIR 9000 is the most popular ENVEA extractive multi-gas analyzer, being used in all type of industries and compliant with all regulations worldwide
  • Designed to measure dry & corrosive samples
  • Fast & simultaneous measurements of up to 10 gases
  • Dry basis measurement
  • Automatic cross interference correction
  • Ideally used with SEC® box permeation sample drying technology and non-heated sample lines for cost effective operations
  • Intrinsic security with residual H2O measurement
  • Built-in paramagnetic cell for O2 monitoring

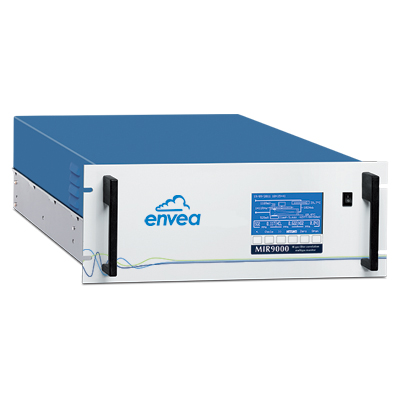

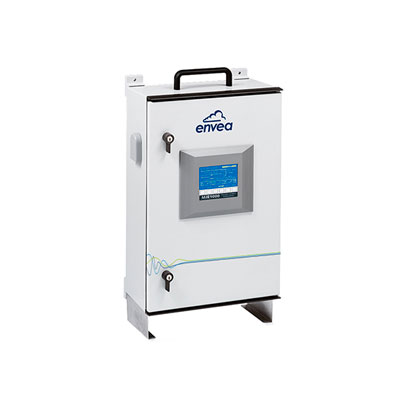

  • The MIR-9000 is either available in a 19″ rack or wall mount enclosure (Tight box version)
  • Stack emission compliance for Municipal and Hazardous Waste Incinerators
  • Cogeneration, Gas Turbines (for ultra-low NOx measurements we recommend the use of the model MIR 9000 CLD)
  • Industrial Boilers and Furnaces

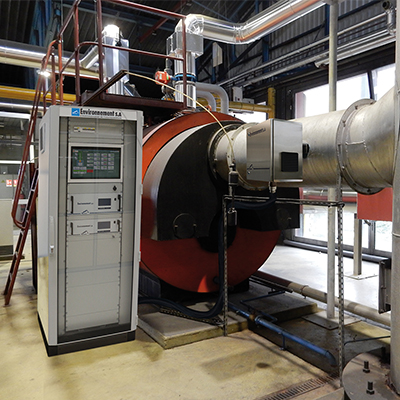

  • Power & Combustion
  • Cement Kilns, Glass, Chemical & Petrochemical Plants
  • Efficiency control for DeNOx systems to guarantee their proper performance
  • For pre and post catalyst SO2 monitoring  (DeSOx unit process control) we recommend the use of the model MIR 9000ASD
Measurable parameters
Pollutant Range
HCI 0-15 / 5000
HF 0-20 / 300
NO 0-100 / 5000
NO2 0-100 / 1000
N2O 0-20 / 1000
NOx 0-200 / 5000
SO2 0-75 / 5000
CO 0-75 / 1000
CH4 0-10 / 1000
THC 0-50 / 5000
CO2(%) 0-10 / 100
O2(%) 0-10 / 25
Lowest / Highest available ranges expressed in mg/m3 (may vary with your site conditions to be indicated on the Site Survey Form)
Other ranges available upon request
Technical Specifications
QAL1 to EN 15267-3 certified YES
US EPA compliance YES
Sampling technology Cold/Dry Extraction
Sample transfert non heated polytube
back flush function YES
span injection YES on analyser or at sample point
Built-In O2 option YES
Serial link communication RS232 / RS422
Other Communication Ethernet
Analogue OUTPUTS Optional
Analogue INPUTS Optional
Dimensions (mm) • Tight box version: 200 x 400 x 600 (D x W x H)
• 19” rack version: 490 x 483 x 177 (D x W x H)
Complete CEMS would normally comprise of:

  • MCERTS & TÜV QAL 1 certified MIR-9000 multi-gas emissions analyzer
  • Graphite 52M FID (If working to EN12619 VOC standard)
  • Sample extraction and conditioning probe (with or without integrated temperature, pressure and flow measurement)
  • SEC® sampling system (permeation based) or gas cooler
  • Sample lines
  • Automatic calibration units (TIG)
  • Instrument air drying system (MDS)
  • Multiplexing system (MVS) for dual redundancy*

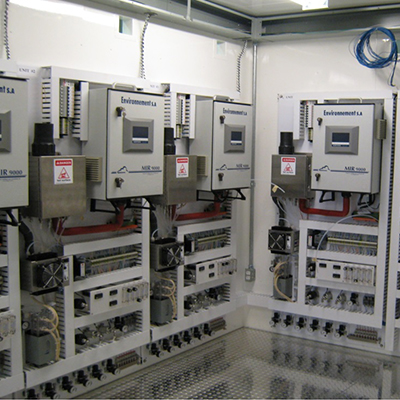

  • Rack cabinet, cubicle or shelter integration
  • MCERTs Certified ENVEA WEX Data acquisition & management system

*Dual Redundancy System

Under the IED, the maximum period allowed for any one episode of abatement or equipment failure must not exceed four hours. Additionally, the total allowance period for a year must not exceed sixty hours.

The ENVEA duplex philosophy has therefore been specifically developed to assist you in complying with IED by reducing downtime, maximising availability and ensuring you achieve a sound return on your investment.

The MIR 9000 multi-gas CEMS offer compliance with EU Regulation IED (WID / LCPD / MCP directive) BREF Incineration, US EPA (40 CFR 60 & 75)

  • QAL 1 certified by the TÜV and the MCERTs to EN 15267
0000024158 MCERTs QAL 1 certified gas monitorSira MC020010/13
  • QAL3 compliance as defined by EN 14181
  • U.S. EPA approved as compliant with 40 CFR 60 ET 75
