Medición del mercurio total en emisiones. Certificado QAL1

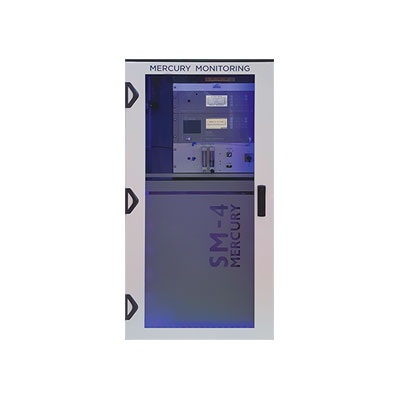

SM-4

Medición continua, precisa y fiable de las emisiones totales de mercurio, incluso en concentraciones muy bajas y dentro de matrices complejas (SO2, NOx, HCl, etc.)

Con más de 20 años de experiencia, Mercury Instruments (parte del Grupo ENVEA) fue la primera empresa en desarrollar analizadores de mercurio utilizando un método termocatalítico seco en lugar de química húmeda.

El analizador de mercurio SM-4 tiene certificación QAL1 y está preparado para cumplir con los requisitos reglamentarios futuros (convenio de Minamata y directivas europeas para centrales térmicas e incineradores)

  • Automatic and continuous monitoring of total mercury emissions in stack flue gases. QAL 1 certified
  • Extremely high precision and reliable measurement
  • Automatic back-flush function
  • Continuous measurement of total Hg (elementary, ionic & organic)
  • No liquid waste or condensate generated
  • Sample dilution directly at sampling point, allowing for large measuring range & elimination of interferences from matrix gases, no transport of ionic Hg
  • Sampling system – composed of the probe, the dilution unit and the low temperature catalytic converter – is entirely heated to avoid mercury adsorption
  • Very low maintenance (service interval: ≥ 3 months) – can be automated
  • Ultra high sensitivity: low measuring range is 0.05 µg/m3
  • Approved and certified by TÜV Rheinland (QAL1)
    Main options:

  • Mercury speciation
  • Elemental Hg calibration gas generator NIST traceable, installed inside the analyzer cabinet
  • Automatic calibration systems (oxidized and elemental)
  • Automatic QAL3
  • Sampling line length up to 100 m (300 ft)
Mercury monitor perfectly adapted for continuous mercury analysis in:

  • Coal fired power plants (before & after mercury absorbers)
  • Emissions monitoring for facilities under 13. and 17. BImSchV
  • Cement kilns
  • Sulfuric acid producing foundries
  • Waste Incineration plants (industrial, medical waste, sewage sludge…)
  • Thermal treatment of contaminated soils, hazardous waste
  • Metallurgical facilities with potential Hg emissions…
Technical Specifications
Measuring principle thermocatalytic reduction at stack, Amalgamation (MI GoldTrap),
cold vapor atomic absorption (CVAAS) at 253.7 nm
Measured component Total mercury (ionic and elemental speciation as option)
UV-Source Electrodeless low pressure mercury lamp (EDL)
Stabilization method Reference beam method
Optical cell Fused silica (Suprasil), l: approx. 230mm, heated approx. 45°
Measuring ranges 0.05 μg/m3 – 500 μg/m3 Hg (up to 1000 µg/m3 as an option)
Detection limit 0.0001 μg/m3 (Detector); < 0.01 μg/m3 (System)
Response time T90 180 – 360 sec
Calibration – automatic, with built-in calibration gas generator for elementary Hg (option);
– automatic, with built-in calibration gas generator for ionic Hg (option);
– manual, with built-in heated fitting to connect externally provided calibration gas (e.g. HOVACAL®)
Technical data
Signal outputs analogue: 4-20 mA (500 Ω max.);
serial: RS232;
Modbus RTU/RS485 (option);
Ethernet (option)
Status output 3 x pairs of relay contacts (dry contacts)
Remote access Modem and SM-4 software (option)
Max. sample temperature 250 °C (others upon request)
Ambient temperature range allowed -5 to 40 °C
Sample line length up to 30 m (up to 100 m option)
Power supply 230 VAC / 50 Hz (110 VAC / 60 Hz option)
Electrical Power consumption Analyzer cabinet: 450 VA;
Probe-converter unit: 1000 VA;
heated sample line: 30 VA / meter
Dimensions (H x W x D) Analyzer cabinet: 161 x 80 x 60 cm;
Probe converter unit: 36 x 36 x 66 cm;
Probe controller: 48 x 44 x 27 cm
Weight Analyzer cabinet (including automatic calibrator): 130 kg;
Probe converter unit: 28 kg;
Probe controller: 14 kg
Compliance with:

  • US EPA 40CFR60 PS-12A Mercury CEMS;
  • Minamata convention & European directives for thermal power plants and incinerators
  • EN 15267 (European regulation);
  • Industrial Emissions Directive (IED)
  • Integrated Pollution Prevention Control (IPPC) Directive,
  • Large Combustion Plant Directive (LCPD)
  • Medium Combustion Plant – MCP Directive (EU) 2015/2193
  • Waste Incineration Directive (WID)

Approved and QAL 1 certified by TÜV Rheinland Energie und Umwelt GmbH, Köln, (QAL1)

Our mercury analyzers are manufactured according to the ISO 9001 quality regulations.

CE approved
