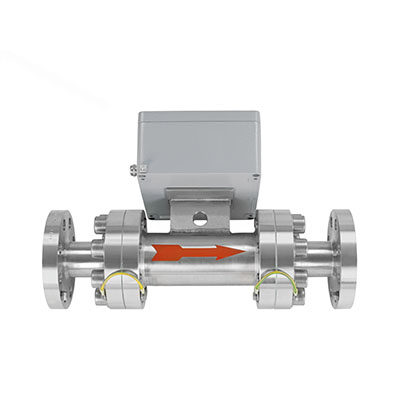

Medición en continuo del caudal másico de sólidos en transporte neumático en fase densa.

Especialmente desarrollado para medición de flujo de sólidos en transporte en fase densa.
El sensor mide la concentración y la velocidad del flujo sólido.

  • sin desgaste gracias a la vejiga de cerámica

También disponible para altas presiones hasta 110 bar.

  • Reliable flow metering in pneumatic dense-stream
  • Unlimited throughput volumes can be measured
  • Optionally pressure-resistant up to 25 bar
  • Installation creates no obstacle in the profile, hence no dead spots in which residue can form
  • Measurement independent of the flow speed of the material
  • Simple retrofitting
  • Maintenance-free
  • Contactless measuring procedure (no mechanics)
  • Materials: Powder or granules in pneumatic dense-stream transport in steel industry
Technical Specifications
Material to measure Dust and powders
Working principle Electromagnetic
Process pressure 25 bar, optional up to 110 bar
Process temperature Up to +120°C
Mounting Flange build-in
Type of Conveying Pneumatic densphase
Flow rates No limit
Pipe diameter Max. DN 150mm
ATEX rating Category 3, Cat. 1 applied
Output 4…20mA, Modbus, Profibus
Sensor Technical Data
Housing Steel St 52, powder-coated (optional Stainless steel 1.4571 DN 10…125 mm (bigger diameters on demand) Flange EN 1092-1
Inner pipe Ceramic
Protection category IP65
Ambient temperature
Mediums temperature
Sensor electronic: 0 … +60 °C
Sensor pipe: 0 …+80 °C
(higher temperatures as option)
Working pressure Max. 25 bar, optional 64 bar
Working frequency 88 kHz
Weight Depending on the nominal diameter
Velocity range 1…10 m/s
Dimension Ø DN + 150 mm, L 500 mm
Accuracy ± 2…5 %
in calibrated range
Transmitter Technical Data
Transmitter (DIN Rail) Transmitter (field housing)
Power supply 24 V DC ±10 % 110 / 230 V AC 50 Hz
(optional 24 V DC)
Power consumption 20 W / 24 VA
Protection type IP 40 to EN 60 529 IP 65 to EN 60 529/10.91
Ambient operating temperature -10 … +45 °C
Dimensions (W x H x D) 23 x 90 x 118 mm 258 x 237 x 174 mm
Weight Approx. 172 g Approx. 2.5 kg
Connection terminals cable
0.2-2.5 mm2 [AWG 24-14]
Current output 1 x 4 … 20 mA (0 … 20 mA),
load < 500 Ω
3 x 4 … 20 mA (0 … 20 mA),
load < 500 Ω
Interface RS 485 (ModBus RTU) / USB
Pulse output Open collector – max. 30 V, 20 mA
Relay contact Max. rated load:
250 V AC
Max. peak current:
6 A
Max. rated load 230 V AC:
250 VA
Max. breaking capacity DC1:
3/110/220 V: 3/0.35/0.2 A
Min. switching load:
500 mW (10 V / 5 mA)
Data backup Flash memory

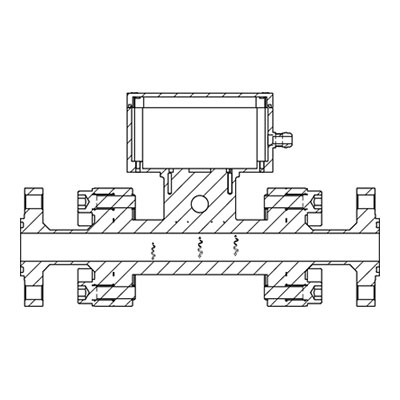

In pneumatic dense-stream conveying , the installation point is specified in accordance with the conveyed inlet and outlet paths.

The assembly of the measuring tube at the specified installation point takes place using a flange installation. Measuring tubes can be supplied in standard form in nominal widths of up to 150 mm with flange connections in accordance with DIN 2576.

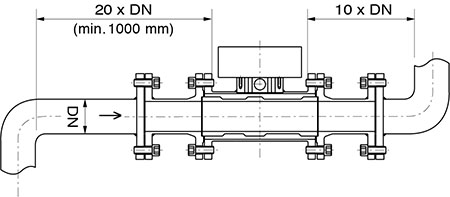

  DensFlow - Mounting and Installation
