FILTRO ELECTRODINÁMICO MEDIDOR DE POLVO/FUGAS

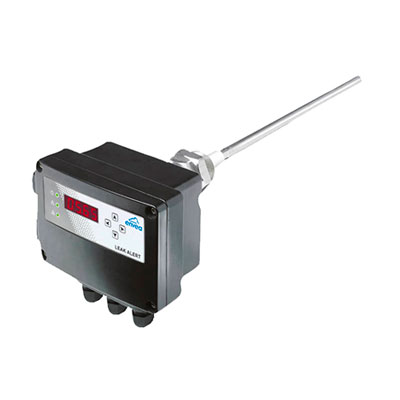

LEAK ALERT 80

Sonda compacta certificada por TÜV para el seguimiento de pérdidas de polvo en filtros, adecuada para el seguimiento de emisiones tras filtros de mangas, filtros de cartucho, ciclones, etc.

  • Reliable measurement of leaking and broken bags in dust collectors
  • External Display and Keyboard
  • In-built sensor Drift Checks (zero and span)
  • Probe Check (Insulator Short-Circuit Check) option for improved data integrity
  • Reduces filter maintenance intervals, process down-time and filter costs
  • Stacks after bag filters, cartridge filters, cyclones
  • Variable velocities within range 4-30m/s (typical bagfilter velocity ranges), constant velocity required outside this range
    Typical Applications:

  • Incineraton
  • Metals (eg Steel/Aluminium)
  • Minerals (eg Cement/Gypsum)
  • Chemicals (eg Detergent / Ti02)
  • Food (eg Milk Powder / Tobbacco)
  • Power (eg Boilers/Biomass)
Technical Specifications
Measured parameters Dust
Technology ElectroDynamic™ Advanced Probe Electrification
Measurement/Monitoring capability 0-500 mg/m3*
Stack/Duct diameter suitability up to 6m
Flue gas temperature up to 400°C
Baghouse YES
Cartridge Filter YES
Ceramic Filter /
Coalescent Filter YES
Cyclone YES
Electrostatic Precipitator (ESP) /
Wet Electrostatic Precipitator (WESP) /
Wet Scrubber /
Sensor variants Stainless Steel
Fully insulated PTFE coated
QA checks YES

*Application dependant

Technical Data
Measurement capability 0-500 mg/m3
Sensor Variants 316 Stainless Steel (standard) / Fully insulated PTFE coated (option)
Stack Temperature Ranges 0-250°C standard, up to 400°C option
Functionality and QA Checks Drift check (zero and span), Probe short circuit check option
Outputs Optional RS232, RS485 (Modbus)
2 x Digital Alarm and 4/20mA
Air Purge Option
  • TÜV Approved (EN 15859) Filter Dust Monitor
  • US EPA MACT Compliant BLD
  • Ex Zone 20
