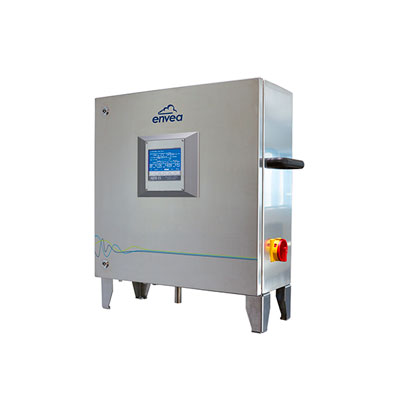

Un completo y compacto sistema “todo en uno” para mediciones multigas, basado en el sistema de análisis MIR 9000 y el sistema de muestreo por permeación mod. SEC de envea.

Medición rápida y simultánea de hasta 10 contaminantes incluyendo: HCl, NO, NO2 (NOx), SO2, CO, CO2, HC, CH4 (TOC), HF, N2O y O2 directamente en el punto de muestreo
• tratamiento de la muestra a analizar integrado en la caja de análisis (no es necesaria una línea de muestreo)

  • Robust analyzer with a stainless steel enclosure
  • Designed for measuring wet & corrosive samples
  • Ease of installation (single stack entry, on-stack or close-coupled) for reduced costs
  • Flow, Temperature & Pressure parameters (optional)
  • Remote control and display functions
  • Graphic LCD screen with real time synoptic
  • Intrinsic security with on-board residual H2O measurement
  • On-board paramagnetic cell for long term O2 measurement
  • Fast response time, with automatic cross interference correction
  • Robust and reliable short extractive analyzer with built-in permeation sample drying system for the measurement of wet and corrosive sample
  • Complete CEMS in one cabinet – combines infrared analyzer, sample conditioning
    system and probe into one device
  • Highly accurate; excellent calibration stability with automatic optical check
  • Heated probe in different materials and lengths to suit the application
  • External signal input for up to 5 additional measurements (flow rate, pressure, gas temperature…) or any other analog input
  • Industrial Boilers and Furnaces, Chemical and Petrochemical Plants
  • Incineration, Co-generation, Gas Turbines, Power Plants
  • Process Control, Pre/post Scrubber Measurements
  • Coal / Oil / Gas Fired Combustion Monitoring
  • CHP Combustion Monitoring
Measurable parameters
Pollutant Range
HCI 0-15 / 5000
HF 0-20 / 300
NO 0-100 / 5000
NO2 0-100 / 1000
N2O 0-20 / 1000
NOx 0-200 / 5000
SO2 0-75 / 5000
CO 0-75 / 5000
CH4 0-10 / 1000
THC 0-50 / 5000
CO2(%) 0-10 / 100
O2(%) 0-10 / 25
Lowest / Highest available ranges expressed in mg/m3 (may vary with your site conditions to be indicated on the Site Survey Form)
Technical Specifications
QAL1 to EN 15267-3 certified YES
US EPA compliance YES
Sampling technology In-Situ
Sample transfert N/A
back flush function YES
span injection YES at sample point
Built-In O2 option YES
Serial link communication RS232 / RS422
Other Communication Ethernet
Analogue OUTPUTS YES (x 8)
Analogue INPUTS YES (x 4)
Dimensions (mm) SS Tight box: 200 x 600 x 600 (D x W x H)

  • QAL 1 certified by the MCERTs to EN 15267-3
    MCERTs QAL 1 certified gas monitor
    Sira MC 040030/09
  • QAL3 compliance as defined by EN 14181
  • U.S. EPA approved as compliant with 40 CFR 60 ET 75
