Detector de polvo electrodinámico

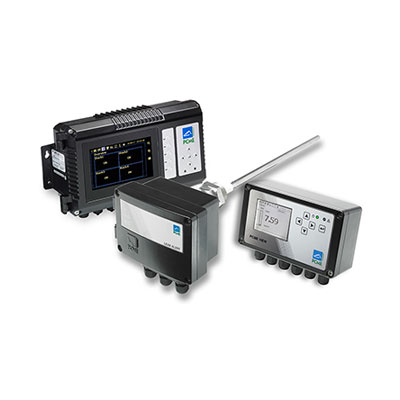

VIEW 273

Medidor de polvo multisensor indicativo de la tendencia de emisiones en chimeneas industriales aguas abajo de filtros de mangas, ciclones y secadores de procesos donde no se requiere certificación

Electrificación de sonda avanzada con registro de datos a largo plazo para analizar e informar tendencias de procesos.

  • Reliable monitoring of leaking and broken bags in dust collectors
  • Sensor configured remotly via controller
  • Large graphical and numeric display
  • Reduces filter maintenance intervals, process down-time and filter costs
  • Stacks after bag filters, cartridge filters, cyclones
  • Variable velocities within range 8-20m/s (typical bagfilter velocity ranges), constant velocity required outside this range
    Typical Applications

  • Incineraton
  • Metals (eg Steel/Aluminium)
  • Minerals (eg Cement/Gypsum)
  • Chemicals (eg Detergent / Ti02)
  • Food (eg Milk Powder / Tobbacco)
  • Power (eg Boilers/Biomass)
Technical Specifications
Measured parameters Dust
Technology ElectroDynamic™ Advanced Probe Electrification
Measurement/Monitoring capability 0-500 mg/m3*
Stack/Duct diameter suitability up to 6m
Flue gas temperature up to 400°C
Baghouse YES
Cartridge Filter YES
Ceramic Filter YES
Coalescent Filter YES
Cyclone YES
Electrostatic Precipitator (ESP) /
Wet Electrostatic Precipitator (WESP) /
Wet Scrubber /
Sensor variants Stainless Steel
Fully insulated PTFE coated
Passive/Active
QA checks N/A

*Application dependant

Technical data
Monitoring capability 0-500 mg/m3
Sensor Variants 316 Stainless Steel (standard), Fully insulated PTFE coated (option),
Passive/Active (option)
Stack Temperature Ranges 0-250°C standard up to 400°C option
On-board data logging User configerable Long term, Short term or Pulse logging
Outputs RS232, RS485 (Modbus), Ethernet Digital Alarm and 4/20mA (number of outputs dependant on controller type)
Air Purge option
  • Ex Zone 20
