Detector de polvo electrodinámico

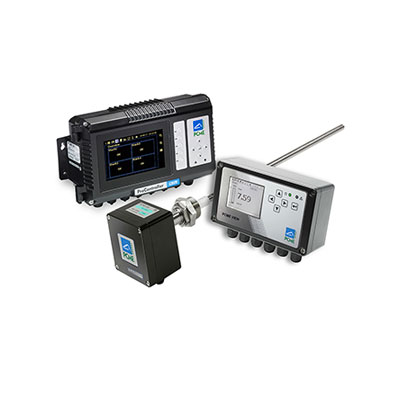

VIEW 370

Medidor de polvo multisensor diseñado para la medición precisa de emisiones después de filtros de mangas, filtros de cartucho, ciclones y secadores de procesos.

Monitor de polvo multisensor de electrificación de sonda avanzada diseñado para medición de emisiones de alta calidad en chimeneas industriales donde no se requieren aprobaciones regulatorias.

  • Full colour, icon-driven menu and display
  • Two independent alarm set points
  • Relative dust reading on clear scale 0-100%
  • Dust “Overrange” icon
  • Security setting
  • Digital Signal Processing
  • Field upgradeable
  • Stacks after bag filters, cartridge filters, cyclones
  • Variable velocities within range 4-30 m/s (typical bagfilter velocity ranges), constant velocity required outside this range
    Typical Applications

  • Incineraton
  • Metals (eg Steel/Aluminium)
  • Minerals (eg Cement/Gypsum)
  • Chemicals (eg Detergent / Ti02)
  • Food (eg Milk Powder / Tobbacco)
  • Power (eg Boilers/Biomass)
Technical Specifications
Measured parameters Dust
Technology ElectroDynamic™ Advanced Probe Electrification
Measurement/Monitoring capability 0-500 mg/m3*
Stack/Duct diameter suitability up to 6m
Flue gas temperature up to 800°C
Baghouse YES
Cartridge Filter YES
Ceramic Filter YES
Coalescent Filter YES
Cyclone YES
Electrostatic Precipitator (ESP) /
Wet Electrostatic Precipitator (WESP) /
Wet Scrubber /
Sensor variants Stainless Steel
QA checks N/A

*Application dependant

Technical data
Monitoring capability 0-500 mg/m3
Sensor Variants Stainless Steel (standard)
Stack Temperature Ranges 0-125°C standard, up to 800°C option
Outputs 2 x Digital Alarms (1 x 4/20mA Option)
  • Ex Zone 22
  • US EPA MACT Compliant BLD

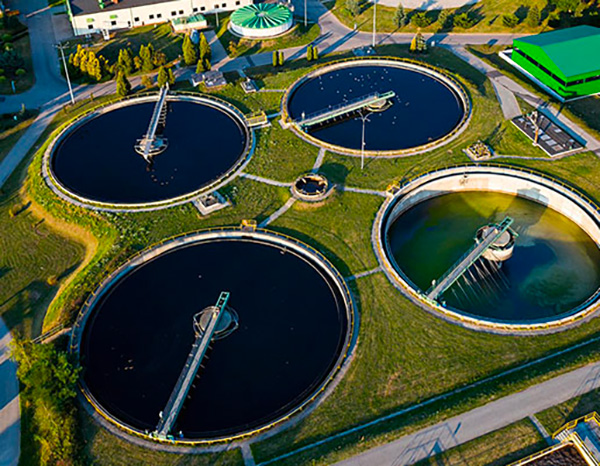

ESTUDIOS DE CASOS RELACIONADOS
