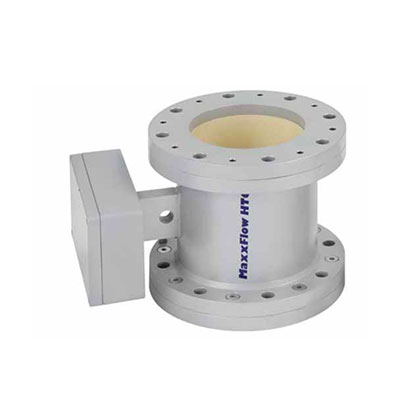

MaxxFlow HTC

Medición no invasiva y sin mantenimiento para altos caudales másicos de sólidos, independientemente de la ruta de la tubería

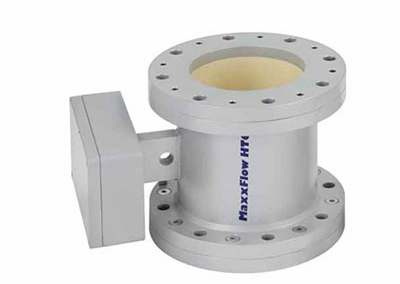

Sensor electromagnético para medir caudales de sólidos de 10…300 t/h.

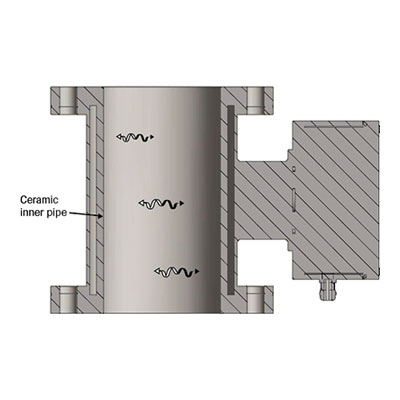

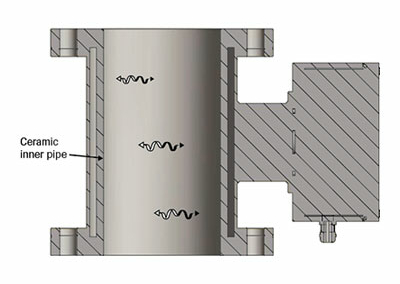

Sin piezas mecánicas en el flujo de material. 100% resistente al polvo y al desgaste gracias a la vejiga de cerámica.

  • Instalación en bajantes verticales o inclinados
  • altura de instalación reducida

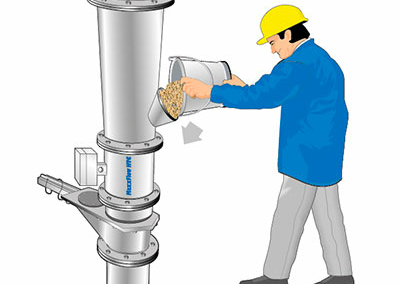

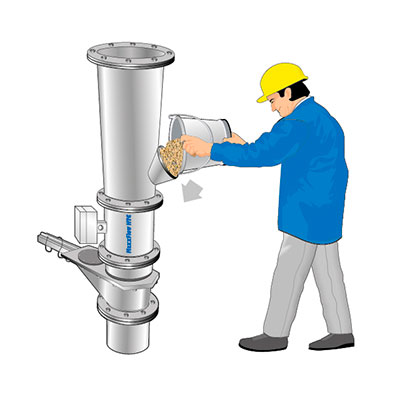

  • calibración sencilla

Medición de caudal desde 10 t/h hasta 300 t/h

  • Most non-metallic solids can be measured
  • Can be installed on round pipes or ducts
  • No real upper limit of mass flow
  • Maximum pressure 10 bar
  • Dust tight
  • No flow restrictions to the process flow (wear resistant ceramic liner)
  • The mass flow measurement is independent of flow characteristics
  • Maximum temperature, 12O °C
  • Can be installed at an angle
  • Small footprint, 220 mm (DN 100), 290 mm (DN 150), 310 mm (DN 200)
  • No moving parts, hence no maintenance
– For flow rates up to 300 t/h
– Low installation height
– Suitable in situations in which it was previously only possible to use complicated, inaccurate or expensive mechanical solutions (impact plates, measuring chutes)

Installation independently of direction of line (vertical, inclined), but always after mechanical conveyor elements, in various industries:

  • Cement
  • Chemistry
  • Energy
  • Coal plant
  • Food
  • Minerals
  • Lime plant
  • Gypsum
  • Mass-flow measurement of raw meal
  • Mass-flow measurement of potato starch in free fall prefiding chain conveyors
  • Mass-flow measurement of salt in free fall pre feeding chain conveyor
  • Mass-flow measurement of wood pellets in free fall
  • Flow mettering of grains
Technical Specifications
Material to measure Dust, powders or granulates max grain size 30 mm
Working principle Electromagnetic
Process pressure 1 bar
Process temperature Up to +120°C
Mounting Flange build-in
Type of Conveying Gravity, also declining pipes
Flow rates Up to 300 t/h
Pipe diameter Up to 200 mm feeder outlet
Output 4…20mA, Modbus, Profibus

The MaxxFlow HTC is specially developed for the flow measurement of dry bulk solids during high-volume throughput. Due to its completely open profile and its low installation height, the MaxxFlow HTC is especially suitable in situation in which it was previously only possible to use complicated or expensive mechanical solutions, e. g. impact plates or measuring chutes.

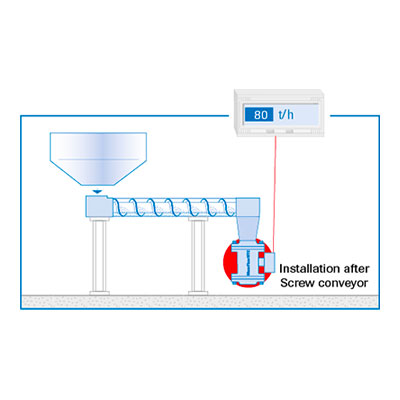

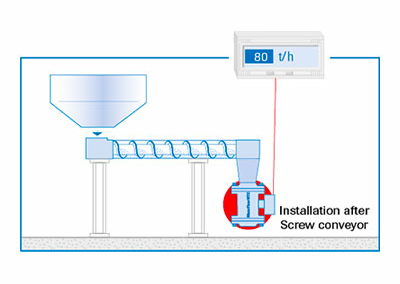

The installation of the MaxxFlow HTC takes place independently of the direction of the line (vertical/inclined), but always after mechanical conveyor elements,
e. g. rotary feeder, screw conveyors, air slides or chain conveyors.

Sensor Technical Data
Housing Steel St 52, powder-coated
(optional stainless steel 1.4571)
NW 80/100/150/200 mm,
Flange according EN 1092-1 / PN10
DN 80: variable
Inner Type Al2 O3-Ceramic
Operating temperature Sensor pipe: – 20 … + 120 °C
Sensor electronic: 0 … + 60 °C
Max. working pressure 1 bar
Working frequency 88 kHz
Transmitting power Max. 2 mW
Weight Depend on diameter
Accuracy ± 1 … 3 %
(based on end of measuring range
and calibrated material)
System accuracy ± 0.04 %
Transmitter Technical Data
MSE 300-DR (DIN Rail) MSE 300-FH (field housing)
Power supply 24 V DC ±10 % 110 / 230 V AC 50 Hz
(optional 24 V DC)
Power consumption 20 W / 24 VA
Protection type IP 40 to EN 60 529 IP 65 to EN 60 529/10.91
Ambient operating temperature -10 … +45 °C
Dimensions (W x H x D) 23 x 90 x 118 mm 258 x 237 x 174 mm
Weight Approx. 172 g Approx. 2.5 kg
Connection terminals cable
0.2-2.5 mm2 [AWG 24-14]
Current output 1 x 4 … 20 mA (0 … 20 mA),
load < 500 Ω (Active)
3 x 4 … 20 mA (0 … 20 mA),
load < 500 Ω (Active)
Interface RS 485 (ModBus RTU) / USB
Pulse output Open collector – max. 30 V, 20 mA
Relay contact Max. rated load:
250 V AC
Max. peak current:
6 A
Max. rated load 230 V AC:
250 VA
Max. breaking capacity DC1:
3/110/220 V: 3/0.35/0.2 A
Min. switching load:
500 mW (10 V / 5 mA)
Data backup Flash memory
DIN rail fastening
DIN 60715 TH35
Cable screw connectors
3 x M20 (4,5 – 13 mm Ø)
A complete measuring station consists of these components:

• Measuring feeder for installation in the conveyor line
• Transmitter

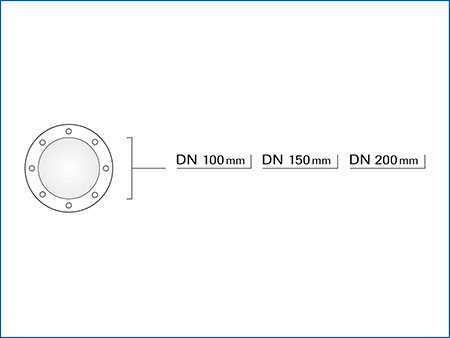

The measuring feeder is available in sizes DN 100, DN 150 mm and DN 200 mm.

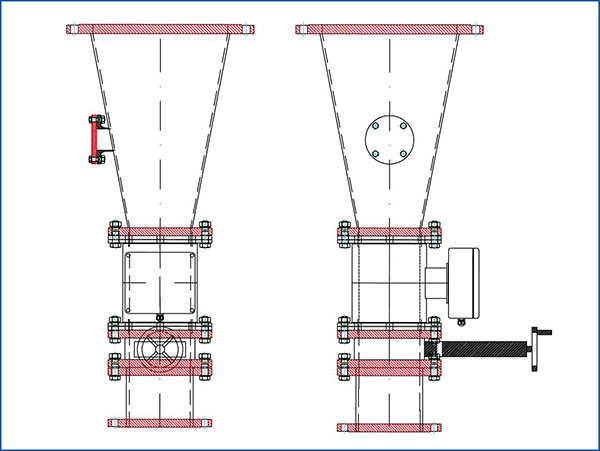

On request the components inlet path (between conveyor element and sensor) and gate valve (for calibration) can also be configured and supplied.

The transmitter is connected to the sensor using 4-wired, shielded cable.
The maximum distance between measuring feeder and transmitter is 300 m.

maxxflow mass flow measurement process solids  maxxflow measurement dimensions process solids
