DETECTOR DE POLVO ELECTRODINÁMICO PARA FILTROS

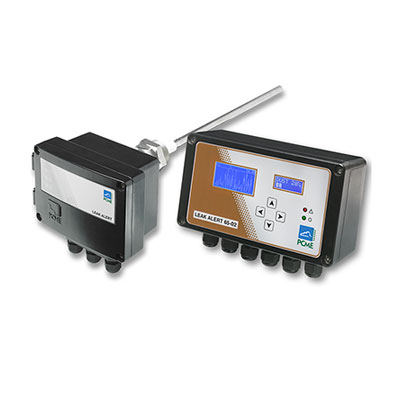

LEAK ALERT 65-02

Detector de fugas de polvo (0-100) con unidad de control para el seguimiento de emisiones de filtros de mangas, filtros de cartucho, ciclones, etc. donde la certificación no es necesaria

  • Reliable monitoring of leaking and broken bags in dust collectors
  • Sensor configured remotly via controller
  • Manual sensor Drift Checks (zero and span)
  • Probe Check (Insulator Short-Circuit Check) option for improved data integrity
  • Digital display and optional graphical display to view live data and monitor bag cleaning cycle
  • Reduces filter maintenance intervals, process down-time and filter costs
  • Stacks after bag filters, cartridge filters, cyclones
  • Variable velocities within range 4-30m/s (typical bagfilter velocity ranges), constant velocity required outside this range
    Typical Applications:

  • Incineraton
  • Metals (eg Steel/Aluminium)
  • Minerals (eg Cement/Gypsum)
  • Chemicals (eg Detergent / Ti02)
  • Food (eg Milk Powder / Tobbacco)
  • Power (eg Boilers/Biomass)
Technical Specifications
Measured parameters Dust
Technology ElectroDynamic™ Advanced Probe Electrification
Measurement/Monitoring capability 0-500 mg/m3*
Stack/Duct diameter suitability up to 6m
Flue gas temperature up to 400°C
Baghouse YES
Cartridge Filter YES
Ceramic Filter /
Coalescent Filter YES
Cyclone YES
Electrostatic Precipitator (ESP) /
Wet Electrostatic Precipitator (WESP) /
Wet Scrubber /
Sensor variants Stainless Steel
Fully insulated PTFE coated
QA checks YES

Application dependant

Technical data
Monitoring capability 0-500 mg/m3
Sensor Variants 316 Stainless Steel (standard) / Fully insulated PTFE coated (option)
Stack Temperature Ranges 0-250°C standard, up to 400°C option
Functionality and QA Checks Drift checks (zero and span), Probe short circuit check option
Output Optional RS232, RS485 (Modbus) 2 x Digital Alarm and 4/20mA
Air Purge option
  • US EPA MACT Compliant BLD
  • Ex Zone 2, 22
