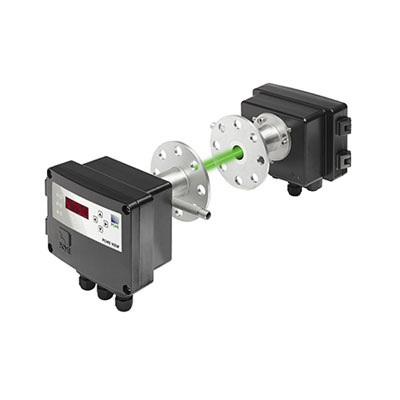

Medidor de polvo de opacidad dinámica

VIEW 580

Opacímetro sin unidad de control en todo el conducto indicado para el seguimiento de emisiones tras electrofiltros y chimeneas sin sistemas de filtración.

  • se utiliza para medir emisiones (mg/m3) después de precipitadores electrostáticos y sistemas de filtrado o para aplicaciones de control de procesos
  • Último diseño de sensor con control automático de deriva (punto cero y rango)
  • Simple installation, set-up and maintenance
  • External display and keyboard for easy set up
  • Can be purged with instrument air providing lower cost of ownership; blowers available if preferred
  • Lower levels of maintenance than traditional Opacity systems
  • mg/m³ output, once calibrated.
  • Stacks after Electrostatic precipitators, bag filters, cartridge filters, cyclones, or no filter
  • Non-condensing / dry flue gases
  • Variable flue gas velocities, including low velocity flue gase
    Typical Applications:

  • Incineration
  • Metals e.g. Steel/Aluminium
  • Minerals e.g. Cement
  • Power e.g. Boilers/Biomass
Technical Specifications
Measured parameters Dust
Technology DynamicOpacity™
Measurement/Monitoring capability 0-1000 mg/m3*
Stack/Duct diameter suitability up to 8m
Flue gas temperature up to 400°C
Baghouse YES
Cartridge Filter /
Ceramic Filter /
Coalescent Filter /
Cyclone YES
Electrostatic Precipitator (ESP) YES
Wet Electrostatic Precipitator (WESP) /
Wet Scrubber /
Sensor variants Stainless Steel
QA checks N/A

Application dependant

Technical data
Monitoring capability 0-1000 mg/m3
Stack Temperature Ranges 0-250°C standard up to 400°C option
Outputs RS232, RS485 (Modbus), 2 x Relay Alarms, 1 x 4/20mA
