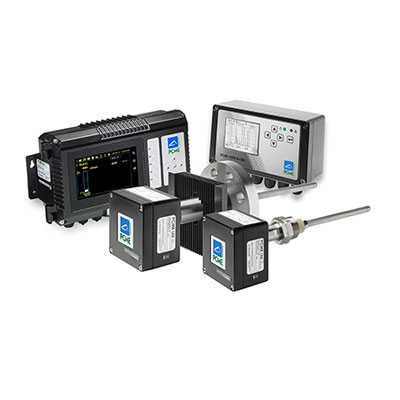

Medidor de polvo electrodinámico multisensor

VIEW 800

Medidor de polvo multisensor certificado ATEX/IECEx Categoría 1 diseñado para proporcionar tendencia indicativa o medición de emisiones en áreas peligrosas desafiantes

La última tecnología de electrificación de sondas, perfectamente adecuada para el monitoreo de partículas después de filtros de bolsa, filtros de cartucho, ciclones y secadores de procesos donde no se requieren aprobaciones reglamentarias.

  • Reliable measurement of leaking and broken bags in dust collectors
  • Senor configured remotly via controller
  • Automatic sensor drift checks (zero and span)
  • Automatic probe check (Insulator Short-Circuit Check) for improved data integrity
  • Reduces filter maintenance intervals, process down-time and filter costs
  • Stacks after bag filters, cartridge filters, cyclones
  • Variable velocities within range 4-30 m/s (typical bagfilter velocity ranges), constant velocity required outside this range
  • Explosive atmosphere zones 0, 1, 2, 20, 21 and 22
  • Minerals (eg Coal Gasification)
  • Petrochemicals (eg Plastics manufacture)
  • Power (eg Biomas)
  • Can be used in metal channels
  • Operational range: starts at dust volumes of 0.1 mg/m3
Technical data
Monitoring capability 0-500 mg/m3
Sensor Variants 316 Stainless Steel (standard)
Stack Temperature Ranges 0-250°C
Pressure Rating < 2Bar
On-board data logging User configurable Long term, Short term or Pulse logging
Outputs RS232, RS485 (Modbus), Ethernet Digital Alarm and 4/20mA (number of outputs dependant on controller type)
  • Ex Zone 0, 1, 2
  • US EPA MACT Compliant BLD
